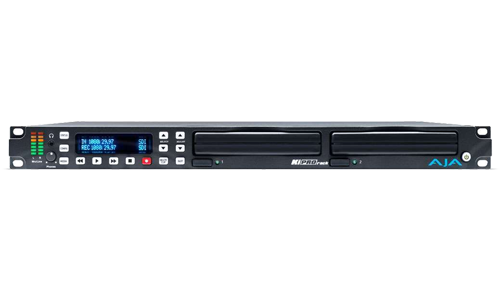

Aja Ki-Pro



Video Input

  • 525i 29.97
  • 625i 25
  • 720P 23.98, 25, 29.97, 50, 59.94, 60 (Note: 720p 23.98 (24), 720p 25 and 720p 29.97 require a valid camera source and the use of the Record Type>VFR selection)
  • 1080i 25, 29.97, 30
  • 1080PsF 23.98, 24, 25*, 29.97* (Note: 25 and 29.97 require a valid camera source and the use of the Record Type>PsF selection)
  • 1080p 23.98, 24, 25, 29.97

Codec Support

  • Apple ProRes 422
  • Apple ProRes 422 (HQ)
  • Apple ProRes 422 (LT)
  • Apple ProRes 422 (Proxy)
  • Avid DNxHD 220x
  • Avid DNxHD 145
  • Avid DNxHD 36 (Note: Avid DNxHD 36 only provides support for the 1080p format)

Removable Storage

  • AJA Ki Stor modules - 2 slots

Video Input Digital

  • SD/HD SDI, SMPTE-259/292/296, 10-bit
  • Single Link 4:2:2 (2 x BNC, input selection in software)
  • HDMI v1.3

Video Input Analog

  • SD/HD Component (3 x BNC)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J
  • 12-bit A/D, 2x oversampling
  • +/- .25 dB to 5.5 MHz Y Frequency Response
  • +/- .25 dB to 2.5 MHz C Frequency Response
  • .5% 2T pulse response
  • <2 ns Y/C delay inequity
    or
  • Composite (1 x BNC – CVBS on Y)

Video Output Digital

  • SD/HD SDI, SMPTE-259/292/296, 10-bit
  • Single link 4:2:2 (1 x BNC)
  • HDMI v1.3
    Note: HDMI requires 1080i, 720p or 1080p to be active; HDMI does not provide support for PsF

Video Output Analog

  • Component (3 x BNC)
  • NTSC, NTSCJ, PAL
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit D/A, 8x oversampling
  • +/- .2 dB to 5.5 MHz Y Frequency Response
  • +/- .2 dB to 2.5 MHz C Frequency Response
  • .5% 2T pulse response
  • <1 ns Y/C delay inequity
    • or
  • Composite (1 x BNC – CVBS on Y)
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • <1% Diff Phase
  • <1% Diff Gain

Audio Input Digital

  • 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
  • 2-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous
  • 8-channel, 24-bit AES/EBU audio, 48KHz sample rate, Synchronous or Non-synchronous, Internal sample rate conversion (4 x BNC)

Audio Input Analog

  • 2-channel, 24-bit A/D analog audio, 48kHz sample rate, balanced (2 x XLR)
  • +24dbu Full Scale Digital
  • +/- 0.2db 20 to 20kHz Frequency Response (Note: Line or Mic selection via CONFIG menu parameters)

Audio Output Digital

  • 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
  • 8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous
  • 8-channel, 24-bit AES/EBU audio, Synchronous or Non-synchronous, Internal sample rate conversion (4 x BNC)

Audio Output Analog

  • 2-channel, 24-bit D/A analog audio, 48kHz sample rate, balanced (2 x XLR)
  • +24dbu Full Scale Digital (0dbFS)
  • +/- 0.2db 20 to 20kHz Frequency Response
  • Stereo unbalanced headphone (1 x 3.5mm mini jack)

Up-Conversion

  • Hardware 10-bit
  • Anamorphic: full-screen
  • Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars
  • Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
  • Zoom Letterbox: results in image zoomed to fill full screen
  • Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change

Down-conversion

  • Hardware 10-bit
  • Anamorphic: full-screen
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
  • Crop: image is cropped to fit new screen size

Cross-conversion

  • Hardware 10-bit
  • 1080i to 720P
  • 720P to 1080i

Timecode

  • SDI RP188/SMPTE 12M via SDI BNC
  • HDMI (when used with compatible cameras)
  • LTC Input (1 x BNC)
  • LTC output (1x BNC) (Note: active during playback not during record or EE)

Reference Input

  • Analog Color Black (1V) or Composite Sync (2 or 4V)
  • Looping, non-terminating

Network Interface

  • 10/100/1000 Ethernet (RJ-45)
  • Embedded web server for remote control

User Interface

  • 2 x 20 character display, with dedicated buttons

Machine Control

  • RS-422, Sony 9-pin protocol (via DB-25 breakout cable or optional KLHi-Box)
  • 9-pin D-connector pinout is as follows:
    1 GND
    2 RX-
    3 TX+
    4 GND
    5 No Collection
    6 GND
    7 RX+
    8 TX-
    9 GND
    Shell GND

Physical

  • Width: 19" (48.26cm)
  • Depth: 12.5" (37.74cm) front panel to the back of the deepest connector
  • Height: 1.75" (4.45cm)
  • Power: 100-240 VAC 50/60Hz (Dual, redundant power supplies), 40W typical
  • Weight: 7.28 lb (3.30215 kg)
